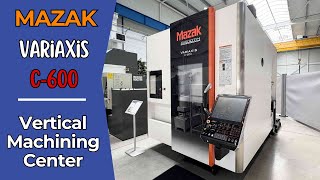

Mazak Variaxis C-600 machining centre
SAINT-GENIX-LES-VILLAGES
If you decide to buy equipment at a low price, make sure that you communicate with the real seller. Find out as much information about the owner of the equipment as possible. One way of cheating is to represent yourself as a real company. In case of suspicion, inform us about this for additional control, through the feedback form.
Before you decide to make a purchase, carefully review several sales offers to understand the average cost of your chosen equipment. If the price of the offer you like is much lower than similar offers, think about it. A significant price difference may indicate hidden defects or an attempt by the seller to commit fraudulent acts.
Do not buy products which price is too different from the average price for similar equipment.
Do not give consent to dubious pledges and prepaid goods. In case of doubt, do not be afraid to clarify details, ask for additional photographs and documents for equipment, check the authenticity of documents, ask questions.
The most common type of fraud. Unfair sellers may request a certain amount of advance payment to “book” your right to purchase equipment. Thus, fraudsters can collect a large amount and disappear, no longer get in touch.
- Transfer of prepayment to the card
- Do not make an advance payment without paperwork confirming the process of transferring money, if during the communication the seller is in doubt.
- Transfer to the “Trustee” account
- Such a request should be alarming, most likely you are communicating with a fraudster.
- Transfer to a company account with a similar name
- Be careful, fraudsters may disguise themselves as well-known companies, making minor changes to the name. Do not transfer funds if the company name is in doubt.
- Substitution of own details in the invoice of a real company
- Before making a transfer, make sure that the specified details are correct, and whether they relate to the specified company.
Seller's contacts
+33 4 86 11...
Show
+33 4 86 11 77 77
Germany, Wiesbaden
50 Hz
Switzerland, Niederhelfenschwil
Italy, Italia
Spain, España
France, Saint-Chamond
France, Saint-Chamond
50 Hz
Switzerland, Niederhelfenschwil
France, Saint-Genix-les-Villages
France, Saint-Genix-les-Villages
United Kingdom, Reino Unido
France, Saint-Chamond
Germany, Wiesbaden
50 Hz
Germany, Wiesbaden
Germany, Wiesbaden
TECHNICAL CHARACTERISTICS:
Year of manufacturing: 2020
Number of simultaneous axes: 5
Stroke X axis: 650 [mm]
Stroke Y axis: 550 [mm]
Stroke Z axis: 530 [mm]
Feed rate on X, Y and Z axes: 42000 [mm/min]
Min. distance spindle nose / table: 50 [mm]
Max. distance spindle nose / table: 580 [mm]
Table dimensions: Ø600 x 500 [mm]
Max. load on table: 500 [Kg]
Stroke C axis : table revolution: 360 [°]
B axis swivelling stroke: -30 [°] / +120 [°]
Spindle type: BT40
Max. spindle speed: 12000 [rpm]
Spindle power: 11 [kW]
Tool changer magazin number of stations: 60
Max. tool length: 300 [mm]
Max. weight of single tool: 8 [Kg]
Max. tool diameter: 80 - 130 [mm]
Total power required: 46.7 [kVA]
Supply voltage : 400 [V]
Machine dimensions : 2350 x 2962 x 3039 [mm]
Layout dimensions : 5010 x 2470 [mm]
Weight: 10000 [Kg]
EQUIPMENT INCLUDED:
x1 RENISHAW part probe type RMP600
x1 RENISHAW tool probe type PRIMO LTS
x1 RENISHAW calibration sphere
x1 electronic handwheel
x1 chip conveyor
x1 high-pressure pump 15 [bar]
Machine visible under power in our premises by appointment.
Price on request, loading on truck included.
Possibility of shipping Worldwide.
The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.
Machine similar to the brands Okamoto, ELB, GER, Tacchella, Karstens, Jones & Shipman, Jung, Favretto, Blohm.
Internal and external grinding (ID/OD).
Also consider: surface grinder, lathe, machining center, milling machine.
CARACTÉRISTIQUES TECHNIQUES :
Année : 2020
Nombre d'axes en continu : 5
Course axe X : 650 [mm]
Course axe Y : 550 [mm]
Course axe Z : 530 [mm]
Vitesse déplacement des axes X, Y et Z : 42000 [mm/min]
Distance mini. broche/table : 50 [mm]
Distance maxi. broche/table : 580 [mm]
Dimensions table : Ø600 x 500 [mm]
Poids maxi. admissible sur la table : 500 [Kg]
Course angulaire axe C : révolution table : 360 [°]
Course angulaire axe B : -30 [°] / +120 [°]
Attachement broche : BT40
Vitesse maxi. broche : 12000 [tr/min]
Puissance broche : 11 [kW]
Nombre de postes magasin d'outils : 60
Longueur maxi. d'outil : 300 [mm]
Poids maxi. par outil : 8 [Kg]
Diamètre maxi. d'outil : 80 - 130 [mm]
Puissance installée : 46.7 [kVA]
Tension d'alimentation : 400 [V]
Dimensions machine : 2350 x 2962 x 3039 [mm]
Dimensions au sol : 5010 x 2470 [mm]
Poids : 10000 [Kg]
ÉQUIPEMENTS INCLUS :
x1 palpeur pièce RENISHAW type RMP600
x1 palpeur outil RENISHAW type PRIMO LTS
x1 sphère de calibration RENISHAW
x1 manivelle électronique
x1 convoyeur à copeaux
x1 pompe Haute Pression 15 [bar]
Machine visible sous tension pour essais en nos locaux, sur RDV.
Prix HT sur demande, chargement sur camion inclus.
Possibilité d’expédition dans toute la France ainsi qu’à l'international.
Plus de photos et détails sur demande.
Descriptif technique à titre indicatif, sans engagement de notre part.
Machine similaire aux marques okamoto , elb , ger , tacchella , karstens , jones shipman , jung , favretto , blohm rectif intérieure extérieure (inter/exter) à voir également rectifieuse plane , tour , centre d'usinage , fraiseuse
